Oval Fire Extinguishers

Chase Fire Proudly Sells, Installs and Services Oval Fire Extinguishers in all of New York and the surrounding areas.

Oval Fire Products manufactures three patented fire extinguisher models, plus accessories for their installation:

  • 10 lb Dry Chemical ABC fire extinguisher Model A-10JABC with 4-A:80-B:C UL & ULC rating
  • 10 lb Dry Chemical ABC fire extinguisher Model A-10HABC with 4-A:80-B:C UL & ULC rating
  • 10 lb Dry Chemical Purple K, BC fire extinguisher Model A-10HPKP with 80-B:C UL & ULC rating
  • Hooks and brackets for surface installations (Hook is patent-pending)

U.S. Patent Nos. 9,364,696 , D760,443 , D760,444

Beautiful and Rugged

The Oval fire extinguisher features a beautiful unique design, while concurrently offering state of the art functionality

ADA Friendly

The Oval Fire Extinguisher is always compliant with the ADA requirements for protruding objects when installed in accordance with NFPA 10. It also complies with the protruding object requirements as listed in AODA, ANSI A117.1 and ISO 21542.

Cabinets Optional

Because of the unique shape and shallow depth of the Oval fire extinguisher, a recessed cabinet is not needed to comply with ADA, AODA, ANSI, ICC, and ISO protruding object limits. However if cabinets are desired, JL Industries is Oval’s preferred cabinet manufacturer. Choose any 12 inch width x 27 inch height cabinet from the JL Industries catalog and ask for the “Oval” option.

Saves Money

Thicker walls are no longer needed with the Oval fire extinguisher. Fully recessed cabinets can now be installed into as narrow as 2-1/2 inch studded wall assemblies. Saves cost on construction and real estate.

AGENT TYPEABC DRY CHEMICALABC DRY CHEMICAL
MODEL NUMBER10HABC10JABC
UL & ULC RATING4A:80B:C– same –
CAPACITY10 LB (4.6 kg)– same –
WEIGHT22 LB (10.1 kg)24 LB (11.1 kg)
HEIGHT23″ (58 cm)22″ (56 cm)
WIDTH OF VESSEL8″ (21 cm)10″ (26 cm)
WIDTH OVERALL9″ (23 cm)11″ (28 cm)
DEPTH3.5″ (9 cm)3″ (8 cm)
RANGE (INITIAL)10-15 FT (3-4.5 m)– same –
DISCHARGE TIME22 SEC– same –
TEMPERATURE RANGE-40° F to 120° F (-40° C to 49° C)– same –
MEETS DOT REQUIREMENTSYES– same –
COMPLIES WITH NFPA 10 STANDARDYES– same –
UL LISTEDYES– same –
ULC (CANADA) LISTEDYES– same –
VALVE TYPEANODIZED, TEMPERED ALUMINUM– same –
SIPHON TUBEHEAVY DUTY ALUMINUM– same –
HANDLE & LEVERSTAINLESS STEEL– same –
DISCHARGE DESIGNHOSE AND NOZZLE– same –
OVAL BUTTON STYLE HOOK INCLUDEDYES– same –
WARRANTY (FROM DATE MANUFACTURED)6 YEARS– same –
BEST SUITED FORSURFACE MOUNTINGOVAL COMPATIBLE CABINETS
MEETS AND EXCEEDS REQUIREMENTS FOR 2A OR 3A RATINGYES– same –
MEETS AND EXCEEDS REQUIREMENTS FOR 40B OR 60B RATINGYES– same –
AGENT TYPEPURPLE K DRY CHEMICAL
MODEL NUMBER10HPKP
UL & ULC RATING80B:C
CAPACITY10 LB (4.6 kg)
WEIGHT22 LB (10.1 kg)
HEIGHT23″ (58 cm)
WIDTH OF VESSEL8″ (21 cm)
WIDTH OVERALL9″ (23 cm)
DEPTH3.5″ (9 cm)
RANGE (INITIAL)10-15 FT (3-4.5 m)
DISCHARGE TIME22 SEC
TEMPERATURE RANGE-40°F to 120°F (-40°C to 49°C)
MEETS DOT REQUIREMENTSYES
COMPLIES WITH NFPA 10 STANDARDYES
UL LISTEDYES
ULC (CANADA) LISTEDYES
VALVE TYPEANODIZED, TEMPERED ALUMINUM
SIPHON TUBEHEAVY DUTY ALUMINUM
HANDLE & LEVERSTAINLESS STEEL
DISCHARGE DESIGNHOSE AND NOZZLE
OVAL BUTTON STYLE HOOK INCLUDEDYES
WARRANTY (FROM DATE MANUFACTURED)6 YEARS
BEST SUITED FORSURFACE MOUNTING
MEETS AND EXCEEDS REQUIREMENTS FOR 40B OR 60B RATINGYES

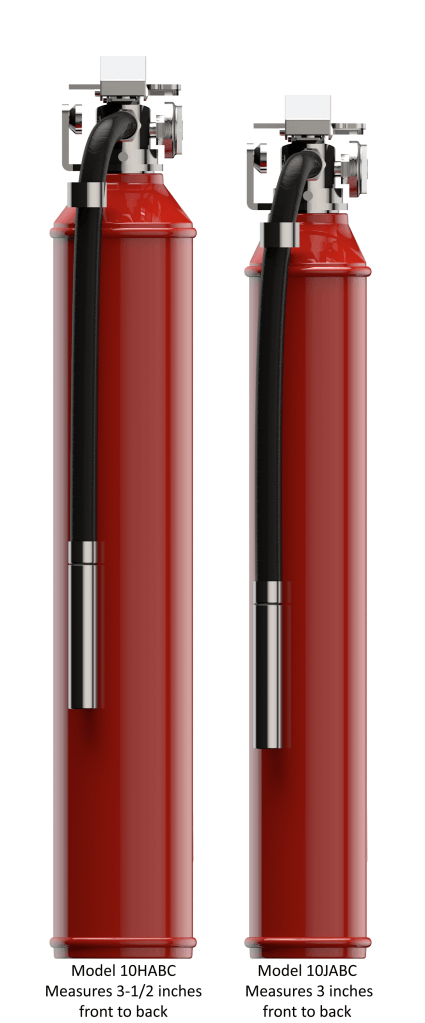

Oval Fire Extinguishers Side-View
Oval Fire Extinguishers Side-View
ABC and Purple K Oval Fire Extinguishers

Chase Fire is New York’s Chosen Distributor of Oval Fire Extinguishers. We offer reliable installation, sales and servicing.

Call-us for a quote @ 718-383-8000

Get a Quote

  • Auto Completing Address field for location quote
  • This field is for validation purposes and should be left unchanged.

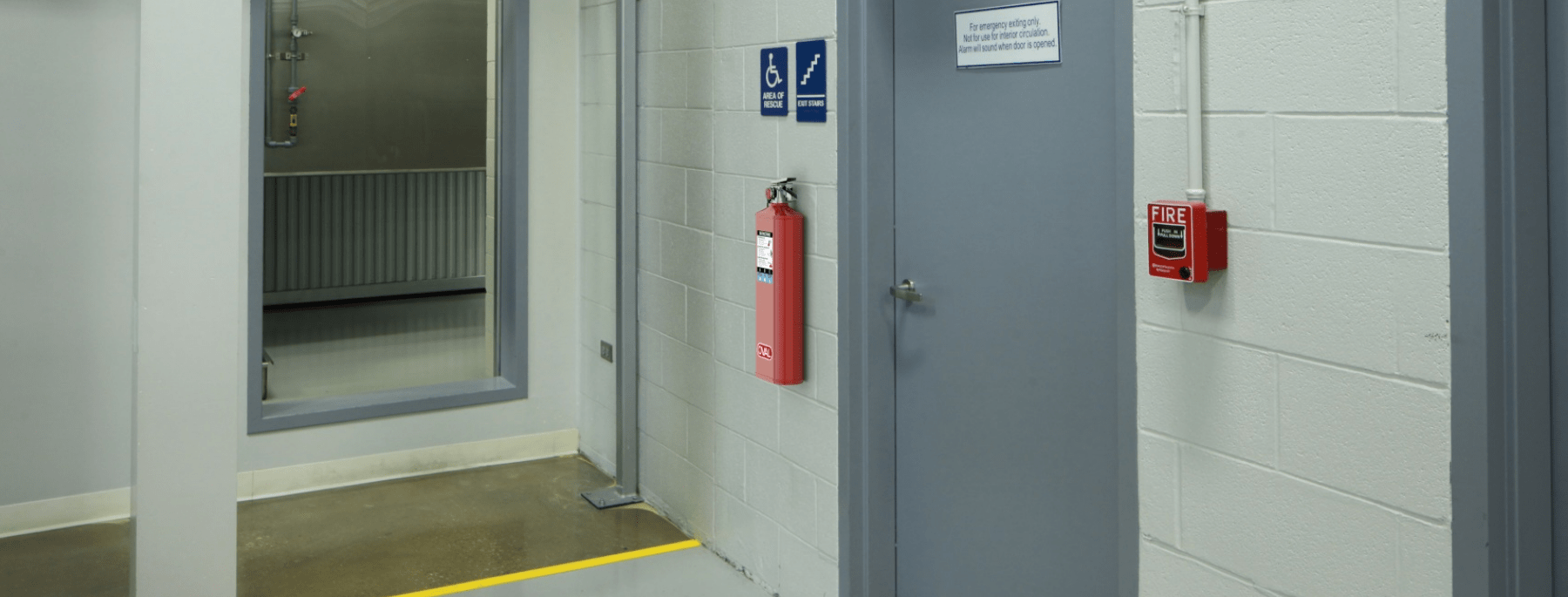

Oval fire extinguisher stairwell
Oval Fire Extinguisher attached to a desk

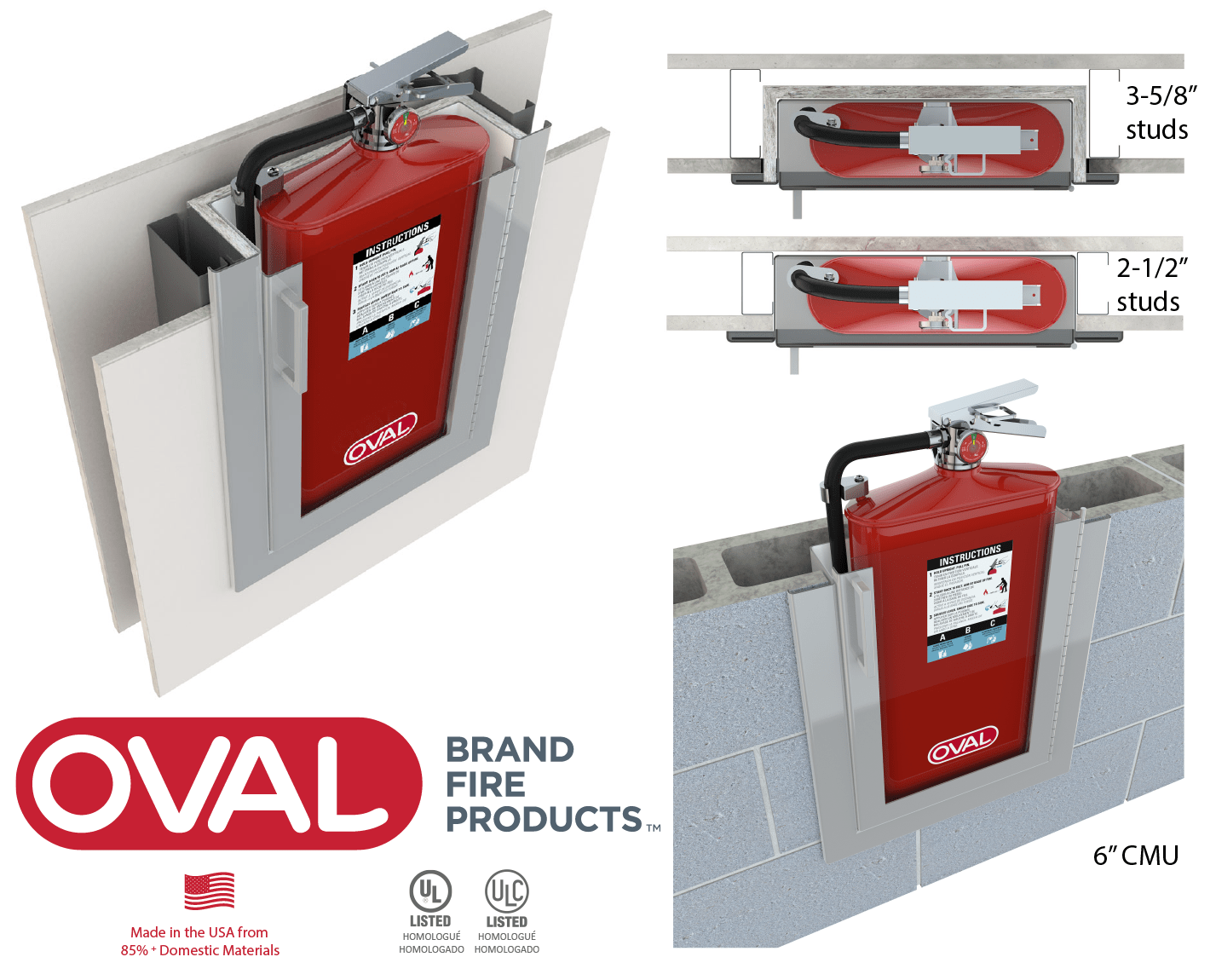

oval cabinet spec sheet
This Series Features a Low Profile Tub to Accommodate the Oval 10JABC Fire Extinguisher* to Fit Into a 3 5/8” Stud Wall and meet the ADA 4” maximum requirement for protruding objects.Door and Trim Construction: Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. Doors with glazing have clear acrylic glazing.Finish Choices:Powder-coated Steel # 4 Satin Stainless Steel US 10 Satin Bronze US 3 Polished Brass # 180 Clear Anodized AluminumTrim Style and Depth: Recessed - 3/8" flat trim with 1 3/4" face trim on frame and 1 1/4" trim on door.Tub: Constructed of cold rolled steel with white powder-coat finish standard. Extinguisher rests on a 1” high shelf.Fire-Rated FX2 Option Available: Yes
oval cabinet 1
This Oval Series features a low profile tub to accommodate Oval Brand model 10JABC to fit Into a 3 5/8” stud wall and meet the ADA 4” maximum requirement for protruding objects.
cabinet dimensions assembly oval 1
Trim Style and Depth: Recessed - 3/8" flat trim with 1 3/4" face trim on frame and 1 1/4" trim on door.Tub: The extinguisher rests on a 1” high shelf.
oval fire extinguisher cabinet spec sheet1
oval fire extinguisher cabinet spec sheet2
