OVAL FIRE EXTINGUISHERS
Oval Fire Products manufactures three patented fire extinguisher models, plus accessories for their installation:
BEAUTIFUL AND RUGGED
| AGENT TYPE | ABC DRY CHEMICAL | ABC DRY CHEMICAL |
|---|---|---|
ABC DRY CHEMICAL |
10HABC |
10JABC |
UL & ULC RATING |
4A:80B:C |
– same – |
CAPACITY |
10 LB (4.6 kg) |
– same – |
WEIGHT |
22 LB (10.1 kg) |
24 LB (11.1 kg) |
HEIGHT |
23″ (58 cm) |
22″ (56 cm) |
WIDTH OF VESSEL |
8″ (21 cm) |
10″ (26 cm) |
WIDTH OVERALL |
9″ (23 cm) |
11″ (28 cm) |

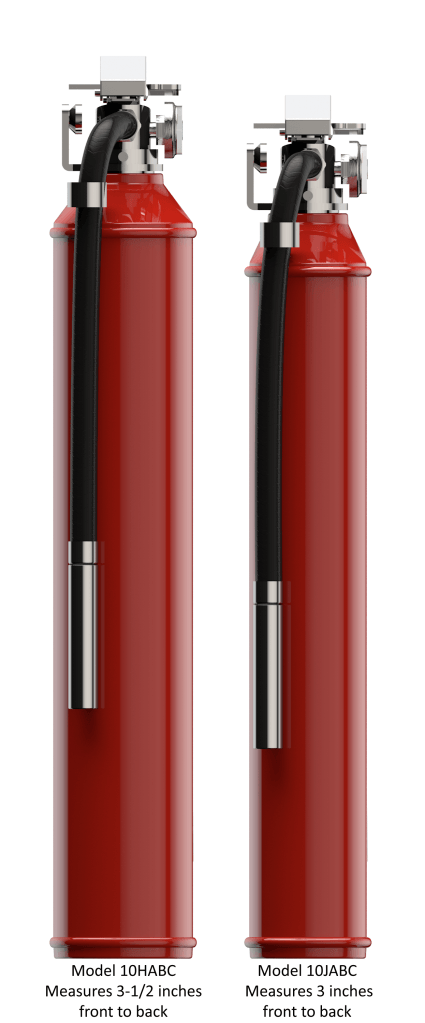

DEPTH |
3.5″ (9 cm) |
3″ (8 cm) |
RANGE (INITIAL) |
10-15 FT (3-4.5 m) |
– same – |
DISCHARGE TIME |
22 SEC |
– same – |
TEMPERATURE RANGE |
-40° F to 120° F (-40° C to 49° C) |
– same – |
MEETS DOT REQUIREMENTS |
YES |
– same – |
COMPLIES WITH NFPA 10 STANDARD |
YES |
– same – |
UL LISTED |
YES |
– same – |
ULC (CANADA) LISTED |
YES |
– same – |
VALVE TYPE |
ANODIZED, TEMPERED ALUMINUM |
– same – |
SIPHON TUBE |
HEAVY DUTY ALUMINUM |
– same – |
HANDLE & LEVER |
STAINLESS STEEL |
– same – |
DISCHARGE DESIGN |
HOSE AND NOZZLE |
– same – |
OVAL BUTTON STYLE HOOK INCLUDED |
YES |
– same – |
WARRANTY (FROM DATE MANUFACTURED) |
6 YEARS |
– same – |
BEST SUITED FOR |
SURFACE MOUNTING |
OVAL COMPATIBLE CABINETS |
MEETS AND EXCEEDS REQUIREMENTS FOR 2A OR 3A RATING |
YES |
– same – |
MEETS AND EXCEEDS REQUIREMENTS FOR 40B OR 60B RATING |
YES |
– same – |
| AGENT TYPE | ABC DRY CHEMICAL |
|---|---|
ABC DRY CHEMICAL |
10HABC |
UL & ULC RATING |
4A:80B:C |
CAPACITY |
10 LB (4.6 kg) |
WEIGHT |
22 LB (10.1 kg) |
HEIGHT |
23″ (58 cm) |
RANGE (INITIAL) |
10-15 FT (3-4.5 m) |
DISCHARGE TIME |
22 SEC |
TEMPERATURE RANGE |
-40° F to 120° F (-40° C to 49° C) |
MEETS DOT REQUIREMENTS |
YES |
COMPLIES WITH NFPA 10 STANDARD |
YES |
UL LISTED |
YES |
ULC (CANADA) LISTED |
YES |
VALVE TYPE |
ANODIZED, TEMPERED ALUMINUM |
SIPHON TUBE |
HEAVY DUTY ALUMINUM |
HANDLE & LEVER |
STAINLESS STEEL |
DISCHARGE DESIGN |
HOSE AND NOZZLE |
OVAL BUTTON STYLE HOOK INCLUDED |
YES |
WARRANTY (FROM DATE MANUFACTURED) |
6 YEARS |
BEST SUITED FOR |
SURFACE MOUNTING |
MEETS AND EXCEEDS REQUIREMENTS FOR 40B OR 60B RATING |
YES |
Chase Fire is New York’s Chosen Distributor of Oval Fire Extinguishers. We offer reliable installation, sales and servicing.
Call-us for a quote @ 718-383-8000
FREE QUOTES FOR FIRE EXTINGUISHER SERVICE

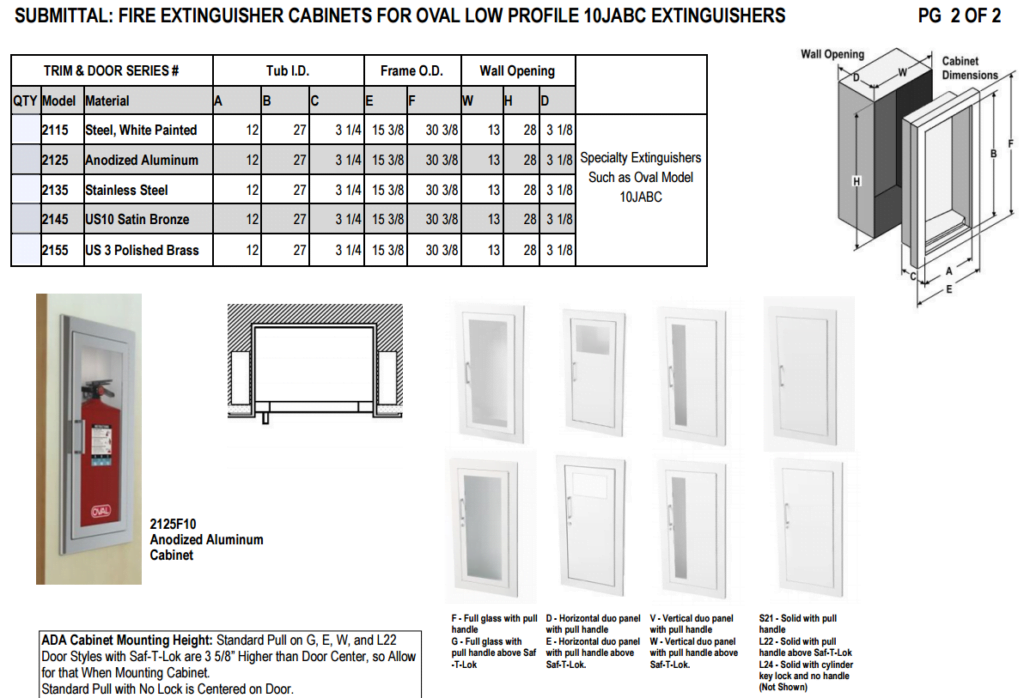

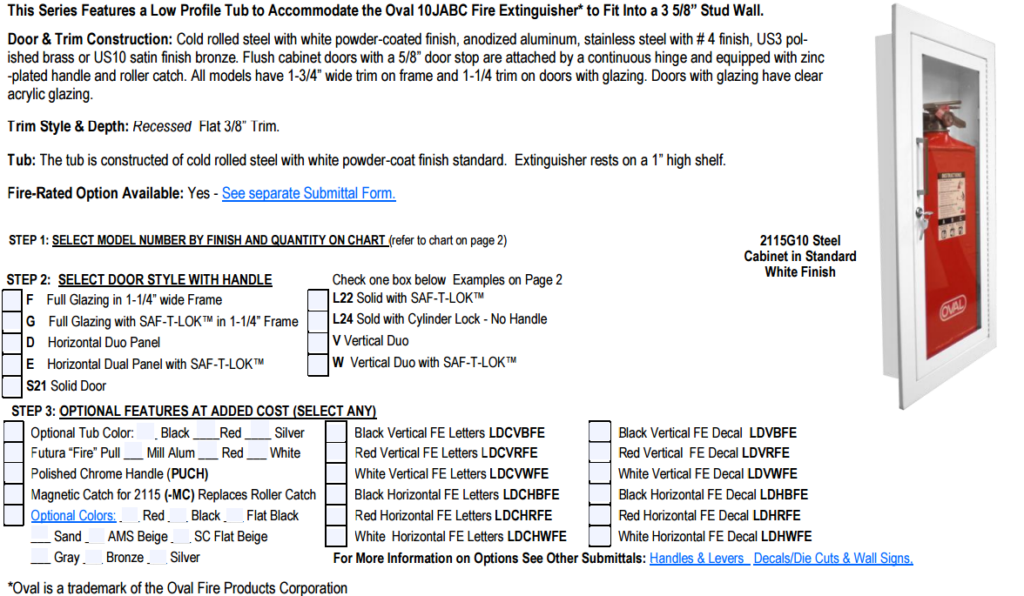

This Series Features a Low Profile Tub to Accommodate the Oval 10JABC Fire Extinguisher* to Fit Into a 3 5/8” Stud Wall and meet the ADA 4” maximum requirement for protruding objects.Door and Trim Construction: Flush cabinet doors with a 5/8″ door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
This Series Features a Low Profile Tub to Accommodate the Oval 10JABC Fire Extinguisher* to Fit Into a 3 5/8” Stud Wall and meet the ADA 4” maximum requirement for protruding objects.Door and Trim Construction: Flush cabinet doors with a 5/8″ door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
This Series Features a Low Profile Tub to Accommodate the Oval 10JABC Fire Extinguisher* to Fit Into a 3 5/8” Stud Wall and meet the ADA 4” maximum requirement for protruding objects.Door and Trim Construction: Flush cabinet doors with a 5/8″ door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.

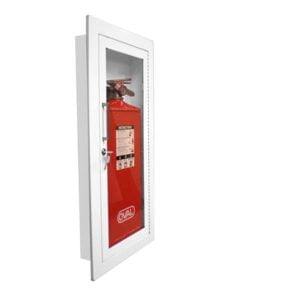

This Oval Series features a low profile tub to accommodate Oval Brand model 10JABC to fit Into a 3 5/8” stud wall and meet the ADA 4” maximum requirement for protruding objects.

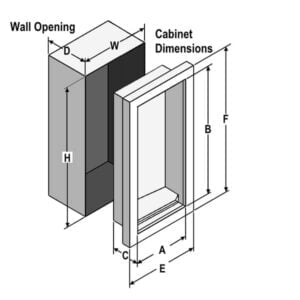

Trim Style and Depth: Recessed – 3/8″ flat trim with 1 3/4″ face trim on frame and 1 1/4″ trim on door.Tub: The extinguisher rests on a 1” high shelf.
